Gmp 86074 Lasher Cable J2B Without Strand Lock W/Case New

Gmp 86074 Lasher Cable J2B Without Strand Lock W/Case New

Available*
Item # 30650060
Model # 86074
$9,030.00
Peac Financing financing available. Learn More
Qty:

* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)

  • Product Description
  • You Might Also like
  • Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
LASHERS
Tools
Line Construction- Placing
Lashers- Spinners
GMP GENERAL MACHINE PRODUCTS
CA Prop 65 Warning Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Description

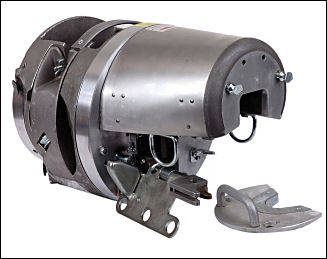

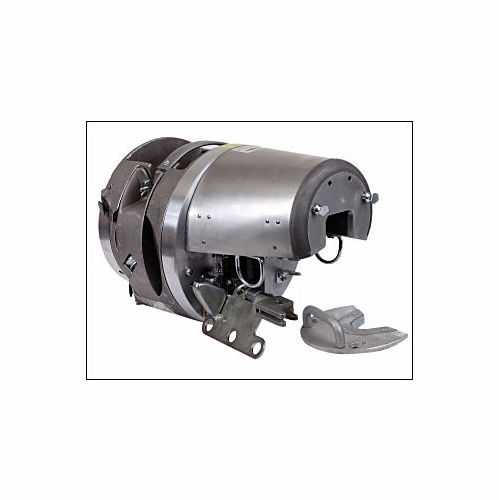

General Machine Products 86074 Lasher Cable J2B Without Strand Lock W/Case New The Model J2 Cable Lasher Is Used To Lash A Single Aerial Cable Or Numerous Cables To A Supporting Strand Or To An Existing Lashed Cable With Stainless Steel Lashing Wire.

Will Lash Any Single Or Multiple Aerial Cables Up To 3 In. (76 Mm) Diameter Across On Any Suspension Strand From 1/4 In. (6 Mm) To 7/16 In. (11 Mm). A Factory Modification Will Allow The Lasher To Accommodate 1/2 In. (12.7 Mm) Strand If Necessary.

Consists Of A Rotating Drum Supported On A Carriage That Provides The Mounting For A Driving Mechanism, Cable Lifters, Cable And Strand Rollers

Each Of Two Recessed Magazines Will Hold A 1200 Ft. Coil Of .045 In. (365 M Of 1.1 Mm Wire) Lashing Wire (Or 450 Ft. Of .065 In.). The Lashing Wire Is Fully Recessed And Covered By A Gate.

Features A Fast Setup Procedure, Quick Coil Loading, And Automatic Drum Lock For Easy Span Transfers And Smooth Forward Travel

In Response To Customer'S Requests, General Machine Products Developed A J2 That'S Capable Of Large Bundle Overlashing. We'Ve Removed The Strand Lock And Enlarged The Opening To Prevent Cable From Rubbing On The Housing. Included Is A Removable Front Handle To Aid In Moving The Lasher Around A Pole. J2 Lashers Make Overlashing Easy. Just Push Down On The Strand Roller Knob, Rotate It A Quarter Turn And You Can Lash Additional Cables Together On Previously Lashed Cable

Positive Internal Gear To Gear Mechanism Has No Chains Or Belts To Stretch, Slip Or Break

Constructed With Heat-Treated, Plated Steel, Stainless Steel, Brass And Aluminum Components. Contains Sealed And Oiless Bearings To Minimize Maintenance And Assure Durability.

Pre-Drilled And Tapped At The Factory For Mounting Of The Lasher Guard Or "Halo". For Use When Lashing In Overgrown Areas.

The J2 And Every General Machine Products Lasher Is Fully Serviceable To "Good-As-New" Specifications At Our Factory And At Factory-Trained Service Locations Around The Globe.

The Lasher Is Furnished With A Rugged Lightweight Storage Chest With Corrosion Resistant Hardware, Recessed Latches And A Moisture-Proof, Tongue-In-Groove Design For Maximum Protection When Not In Use

Supplied With A 6 Ft. Bridle Rope Assembly And Snap Hooks, And An Information And Operation Manual

Ordering Information: P/N Description Wire Dia. Weight

--------------------------------------------------------------------------------

P/N Description Wire Dia. Weight 86070 J2 Cable Lasher Standard W/ Chest .045 65 Lbs. (30 Kgs) 86071 J2 Cable Lasher W/ Chest Modified For 450 Ft. (Optional) .065 65 Lbs. (30 Kgs) Weight Of Lasher Only 46 Lbs. (21 Kgs) 86072 J2 Cable Lasher Modified For .535 In. Strand 65 Lbs. (30 Kgs) 86074 J2 Cable Lasher W/O Strand Lock 65 Lbs. (30 Kgs) 03165 Bridle Rope Assembly Only 3 Lbs. (1.4 Kg) 08189 Chest Only 19 Lbs. (8.6 Kgs) 70190 Towing Lanyard 35 Ft. (10.7 M) (Optional) 6 Lbs. (2.7 Kgs) 70012 Lasher Guard "Halo" (Optional) 3 Lbs. (1.4 Kg)

In Response To Customer'S Requests, General Machine Products Developed A J2 That'S Capable Of Large Bundle Overlashing. We'Ve Removed The Strand Lock And Enlarged The Opening To Prevent Cable From Rubbing On The Housing. Included Is A Removable Front Handle To Aid In Moving The Lasher Around A Pole.
