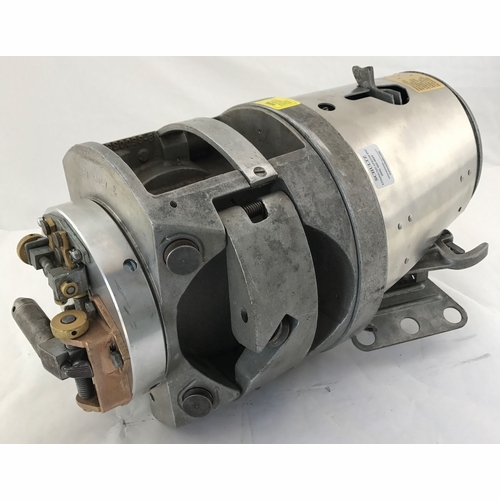

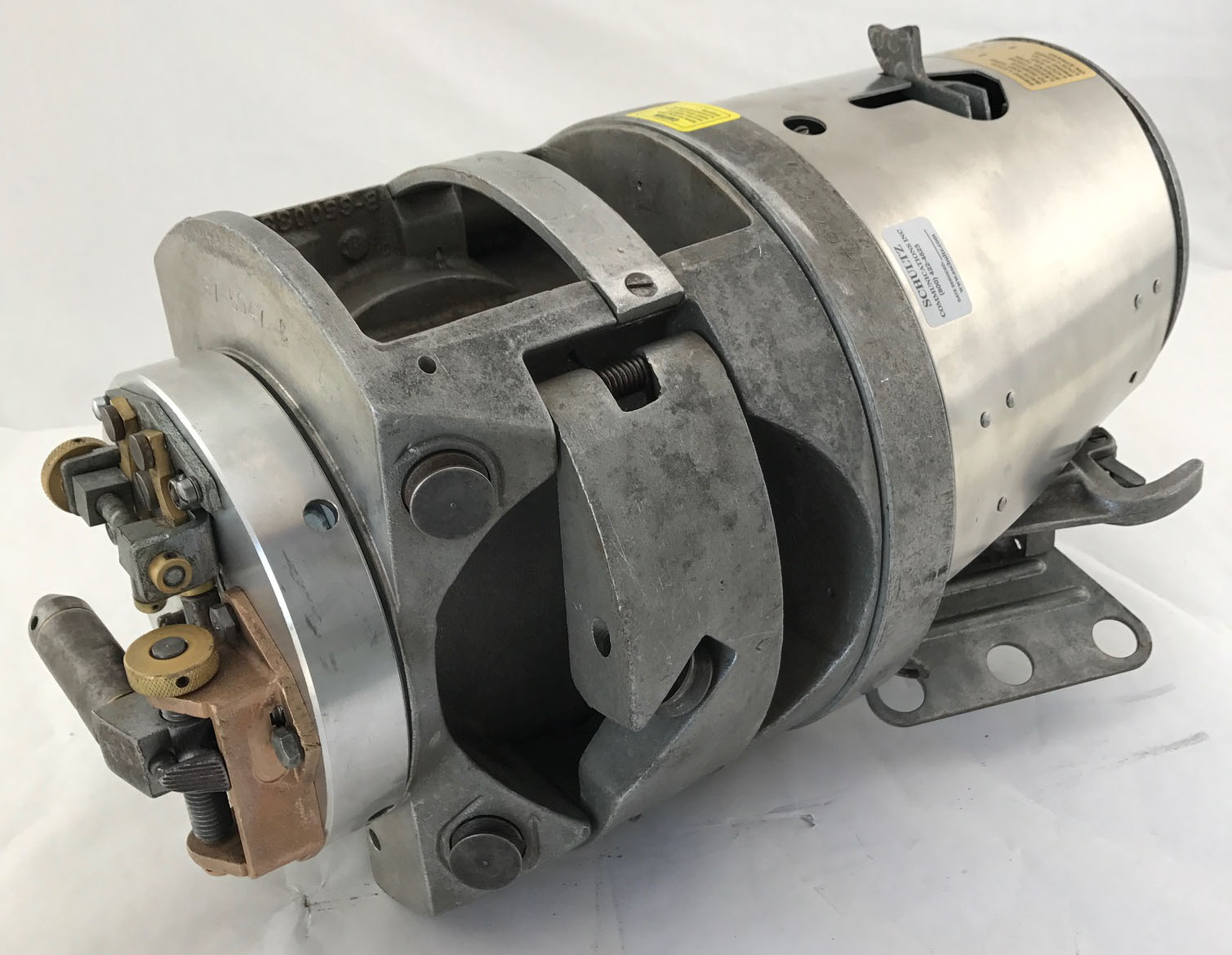

The C2 Cable Lasher is used to lash small diameter aerial cables to supporting strand with stainless steel lashing wire. Is used primarily for new installations.
Will lash any single or multiple cables up to 1 3/4 in. (44 mm) dia. onto bare 1/4 in. to 3/8 in. strand
All the same high quality features as the J2 Cable Lasher; hose features include dual magazines allowing you to load two 1200 ft. coils of .045 lashing wire, (365 m of 1.1 mm wire) the ability to mount a lasher guard or "halo" into pre drilled holes, and a built in brake to prevent backroll
This unit is built to last; the parts are all made from plated steel, stainless steel, brass or aluminum. Contains sealed and self lubricating bearings to minimize maintenance and assure durability
The lasher is furnished with a 6 ft. bridle rope assembly and snap hooks, an information and operation manual and a rugged lightweight storage chest
P/N Description Diameter Weight
71420 C2 Cable Lasher
Standard w/Chest .045 49 lbs. (23 kgs.)
71421 C2 Cable Lasher
C2 Modified w/Chest .065 49 lbs. (23 kgs.)
-- Cable Lasher wt. only -- 33 lbs. (15.4 kgs.)
03165 Bridle Rope Assembly only -- 3 lbs. (1.5 kg)
07143 Chest only -- 16 lbs. (7.5 kgs.)
70190 Towing Lanyard 35 ft.
(Optional) -- 6 lbs. (2.8 kgs.)
70011 Lasher Guard "Halo" -- 3 lbs. (1.5 kg)
