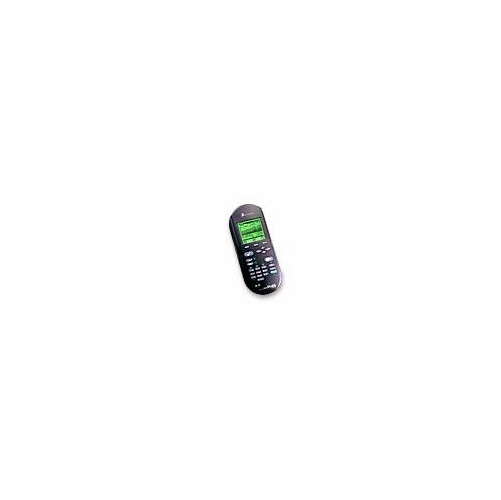

Wavetek Ms1400 Signal Level Stealth Meter Repaired
Available*
Item # 23804450
Model # MS1400
$603.75
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CATV
Test Equipment
Cable Tv
Testers-Monitors
WAVETEK
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Wavetek Ms1400 Signal Level Stealth Meter Repaired System Bandwidth Expansion And Digital Service Deployment Have Placed More Demands On Installers And Service Technicians. Todays Installers Require A Signal Level Meter That Combines Advanced Measurement Capability With The Ruggedness Needed For Everyday Field Use.
The Microstealth Family Of Slms Offers Comprehensive, Reliable Measurement Performance For Every Skill Level Of The Cable Networks Technician And Engineer. From Field Maintenance To Installation, To Troubleshooting Todays More Advanced Networks, There Is A Microstealth Designed To Meet Your Specific Testing Needs. All Models Quickly Locate, Analyze, And Repair Network Trouble, But Each Have Additional Features Unique To Specific Testing And Maintenance Requirements.
Ms1400 Features : * Icon Driven User Interface * 6 Channel Scan Installation Check * Configure By Channel Or Frequency * Channel Video/Audio Level & Delta Fcc & Cenelec Limit Check * Tilt Mode * Cloning * Prints Current Data * All Channel Scan/Full Scan * Ingress Scan In Reverse Band * Ingress Scan In Forward Band * Customized Channel Plans * Stores Measured Results/Screens * 24 Hour - Auto Test * Prints Stored Results * Downloads To Stealthware * Digicheck Digital Measurement Digital & Analog Limits * Multi-Lingual Lcd Screen *Standard Frequency Range : 5-890 Mhz
Ms1400 Specifications :
Frequency Range : 5 To 890 Mhz *Accuracy : +-10 Khz@25 C (=-20 Khz Over Temp.) *Tuning Resolution : 25 Khz
Level Measurement In Db : *Range : -20 To +50 Dbmv *Resolution : 0.1Db
Accuracy : *Flatness : +-0.75 Db Flatness *Linearity : +-0.75 Db Flatness *Digicheck : +/-2Db
Six Channel Mode : *Number Of Channels : 6 *Scan Rate : < 1 Second
Full Scan Mode : *Number Of Channels : 120 *Scan Rate : Approx 6 Carrier/Second
General Dimensions : 4.25W X 10H X 2.5D *Weight : 0.8 Kg. (1.75 Lb) *Operating Temp Range : 10 To 50 C (14 To 122F) *Water Resistant : Exceeds Mil-Std-810D
Powering : *Battery Life : 3 Hrs/Replacement Battery *Charge Time : 16 Hrs Unit Off, 30 Hrs Slow Charge (Unit On)
Includes: Wavetek Ms1400 Acterna P/N: 4010-00-0153 Battery Charger W/ Ac Battery Pack Ac Adapter/Charger User Manual On Cd-Rom Soft Carrying Case With Strap Sku Us1Ms-1400 Price $575.00
