General Cable 7026156 Dsx Distribution Frame Wire 2.5 Pairs Bw/Ow/G Spool/1000 Ft
Available*
Item # 14195800
Model # 7026156
$156.06
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
WIRE CCX
Material and Supplies
Wire- Inside Wiring
Wire- Crossconnect- Jumper
GENERIC MANUFACTURER
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

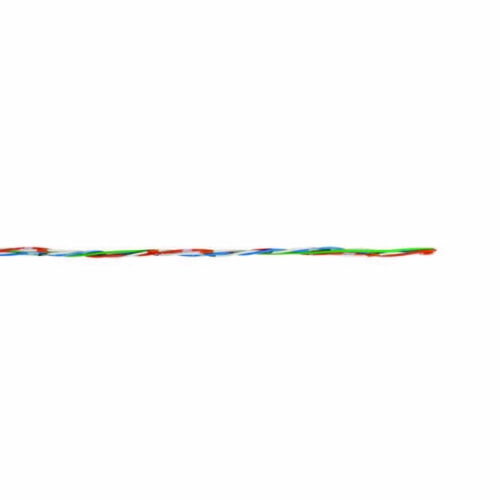

General Cable 7026156 Dsx Distribution Frame Wire 2.5 Pairs Bw/Ow/G Spool/1000 Ft 4 Rolls Per Case
Product Construction Conductors: 24 Awg Solid Tinned Annealed Copperinsulation: Flame-Retardant Semi-Rigid Pvc, 90°C Insulation Thickness = 0.008" Pairing:Six Twists Per Foot Minimum
Color Code: Pair 1: Blue-White/White-Blue Pair 2: Orange-White/White-Orange Single: Green
Physical Data Nominal Cable Diameter (In): 0.10 Nominal Cable Weight (Lbs/1000 Ft): 8.2 Packaging Spool (Sp) Cardboard Coil (Cl)
Applications Suitable For Voice And Datatransmission Up To 16 Mbps For Cross-Connecting Equipment Units In Telephone Central Offices And Point-To-Point Hookups
Compliances Nec/Cec Type Cm (Ul 1685-2000) Category 3 Compatible Rohs Compliant Directive 2011/65/Eu
Electrical Characteristics24 Awgdc Resistance (Max)Ohms/1000 Ft @ 20 °C28.6
Coaxial Capacitance (Max)Microfarads/Kft @ 23 °C0.15 Insulation Resistance (Min)Megohm - Kft @ 23 °C300 Capacitance Unbalance (Max) Picofarads/100Ft @ 1.0 Khz70
Product Construction Conductors: 24 Awg Solid Tinned Annealed Copperinsulation: Flame-Retardant Semi-Rigid Pvc, 90°C Insulation Thickness = 0.008" Pairing:Six Twists Per Foot Minimum
Color Code: Pair 1: Blue-White/White-Blue Pair 2: Orange-White/White-Orange Single: Green
Physical Data Nominal Cable Diameter (In): 0.10 Nominal Cable Weight (Lbs/1000 Ft): 8.2 Packaging Spool (Sp) Cardboard Coil (Cl)
Applications Suitable For Voice And Datatransmission Up To 16 Mbps For Cross-Connecting Equipment Units In Telephone Central Offices And Point-To-Point Hookups
Compliances Nec/Cec Type Cm (Ul 1685-2000) Category 3 Compatible Rohs Compliant Directive 2011/65/Eu
Electrical Characteristics24 Awgdc Resistance (Max)Ohms/1000 Ft @ 20 °C28.6
Coaxial Capacitance (Max)Microfarads/Kft @ 23 °C0.15 Insulation Resistance (Min)Megohm - Kft @ 23 °C300 Capacitance Unbalance (Max) Picofarads/100Ft @ 1.0 Khz70
